Painting & Printing
This brief gives advice for
Materials
The crystal clarity and long-term weatherability of ACRYLITE® sheet allow for painting and printing on fabricated signs, displays, and other decorative items. Using the correct materials will help you produce a quality product.
Paints
The increased use of ACRYLITE® sheet in signs and other decorative applications has led to a variety of paints designed especially for acrylics. Most are supplied as concentrates and require thinner to obtain the correct viscosity. As a rule, use mild thinner consisting of an alcohol blend, rather than one containing aromatic hydrocarbons. Benzene and toluene are two examples of aromatics. Follow paint supplier’s recommendations on the amount and type of thinner.
ACRYLITE® sheets’ extraordinary transparency allows backpainting – applying paint to the side of the material that will not be exposed to the weather. Thus, the unpainted outer surface of the acrylic provides weather protection for the paint. However, if you must paint the outer surface, apply a protective coating over the paint. Paint suppliers can recommend a suitable coating.
Spraying Systems
Any efficient atomizing spray gun system, which will uniformly distribute paint, may be used. Consult equipment suppliers regarding the equipment needed for a particular application. Many paint suppliers also publish excellent manuals which provide up-to-date equipment suggestions.
To obtain atomizing air, the available line pressure should be in the range of 60-90 psig. Use a 25-ft, 5/16” minimum diameter hose to avoid pressure drops in the line. The air compressor should be large enough to provide the volume and pressure required for all guns. It is important to control water and oil in the atomizing air since this will spot the paint and cause non-uniform distribution. Water and oil traps in the line will alleviate the problem.
Equipment cleanliness is crucial to uniform paint dispersion. Place metal screen strainers at the pressure tank and spray gun. Clean these items and the spray gun daily. Install a spray booth large enough to fit your largest work piece. Make sure it is adequately vented according to building code regulations. It is important to use a light box to judge paint uniformity on transparent plastics. Be sure the light box conforms to building code regulations for a spray painting area.
Procedures
Be sure to follow the manufacturers’ safety recommendations for equipment and materials used with ACRYLITE® sheet.
Fabrication Techniques
If you fabricate ACRYLITE® sheet prior to painting, incorrect technique may cause heat build-up, resulting in crazing (numerous tiny cracks in the material) after painting. To ensure that crazing will not occur, review fabrication manuals to assure your fabrication techniques are correct.
Cleaning
Clean ACRYLITE® sheet before painting to remove dust and assure paint adherence. Since acrylic sheet is sensitive to solvents such as aromatic hydrocarbons, concentrated alcohol, and ketones, use care in cleaning. Clean parts with a 25% solution of denatured alcohol and distilled water. However, for stains such as oil or grease, use a stronger cleaning agent such as hexane, aliphatic naphtha, or kerosene. Be sure the sheet is fully dry and clean before painting.
Static Neutralization

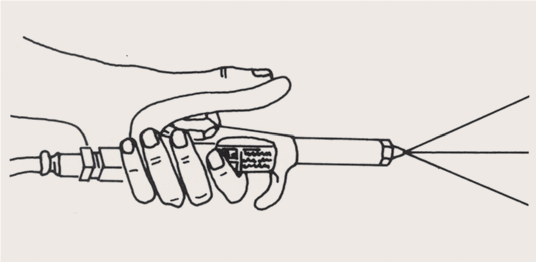

Before painting, it is important to neutralize electric or static charges that accumulate on the sheet’s surface. Dust on the sheet causes paint agglomeration and uneven layers. Since tearing the masking off the sheet will create a static charge, all acrylic pieces should be treated. One common way to do this is with an ionizing air gun. These guns safely and effectively neutralize electric charges.
Alternate techniques, such as wiping the sheet with a damp, lint-free cloth or cleaning with a diluted alcohol-water solution, are also effective. Avoid anti-static cleaners since they may leave a residue and cause paint adhesion problems.
Maskants
The protective paper masking is usually used as a protective layer for spray painting flat signs. However, many paint manufacturers also distribute liquid maskants, which are commonly used to spray paint designs onto ACRYLITE® sheet. Maskant is supplied as a thick liquid consisting of water-soluble latex resins in solution. Because they are water solutions, maskants must be stored above 32°F to prevent freezing. Application is through the use of air or airless atomizing spray equipment – see the drawing shown under 'Spraying Systems'.
Clogging may occur due to dried film mixed with the solution. To prevent this, obtain a special nozzle that reverses the flow of product and cleans out the build-up. Spray the film on evenly to a wet thickness of 10-12 mils, which will dry to above 4-5 mils.
Maskant Drying
Drying time is usually about 2 hours, although it is better to plan overnight drying to assure complete evaporation. Drying can be accelerated by using forced-air heating at 110°F – do not go above this temperature as doing so might dry the surface and prevent evaporation of the water in the layers beneath.
Leave the dried film in place until you are ready to paint to prevent dust accumulation on the plastic surface. Just before painting, score the design on the film using an X-Acto knife (available in art supply stores), giving it just enough pressure to cut the film without scratching the plastic. After painting, leave the film in place until the paint is thoroughly dry. Otherwise, you will get smeared paint and uneven edges.
Painting
Before painting, practice on a few test pieces to be sure that paint viscosity and air pressure are correct. Too high a delivery rate will result in too much paint and cause paint sag. It may also cause crazing due to too much solvent. Too low a delivery rate will result in “dry spray”, a matte surface caused by too much dusting. As a rule, use the lowest pressure at which you obtain correct results. Hold the gun 12-14 inches from the workpiece – too close or too far will cause the above listed defects. Move the gun at an even pace and in a straight line. Its movement should never start or stop directly on the sheet surface. Vary the direction of the spray, horizontally and vertically, to assure uniform coverage. Usually, four or five passes with several seconds between coats will provide sufficient paint. As mentioned, a light box behind the ACRYLITE® sheet will help in judging the uniformity and intensity of color.
Paint Removal
If you need to remove paint from the surface of ACRYLITE® sheet, take it off immediately with the paint manufacturer’s recommended cleaner. Apply the remover using a rag; wipe off paint using a clean rag. Because paint removers contain organic solvents, minimize the time the remover is in contact with acrylic to reduce the chance of crazing.
Screen-Printing
Screen-printing is used for volume production. It is fast and economical. For beginners, it is best to purchase a screen from a local screen supply house. After setup, apply paint with the squeegee in a uniform, even motion in one direction. It will pass through the open mesh on the screen, transferring the pattern onto the acrylic. The most important factors in the screening process are the paint’s viscosity and the size of the mesh openings. These will determine paint flow through the screen and the paint’s appearance on the acrylic. Since many different fabrics are used for screening, and paint viscosity depends on the application and temperature conditions- it is difficult to generalize what these conditions should be. Paint manufacturers give advice on thinning paint. Consult these companies should you need information.
Digital Printing
Printers can generally be divided into two categories:
- Continuous flow - systems which provide a constant flow of ink with a portion of this flow being re-circulated. Ink is deposited on the printing surface by electrostatic charges.
- Drop on demand (DOD) – systems which expel ink from the printing heads only when needed. DOD systems can be further broken down into the following two categories:
- Thermal – printers that gasify the ink immediately prior to application
- Piezo – printers that mechanically supply liquid inks to the substrate
Thermal DOD printers, historically, benefited from lower initial cost at the expense of more maintenance to the printing heads due to clogging, and wear of nozzles. Piezo DOD systems while costing more initially require less maintenance. An additional benefit of piezo printers is the ability to use more heavily pigmented inks that are better for outdoor applications.
The present day’s demand for more durable prints coupled with reduced printer costs have, over time, made piezo systems the dominant type of printer. Piezo systems use one of two main types of inks:
- Solvent – includes water based, eco- solvent, and petroleum based solvent
- UV curable
Piezo printers are designed to use either UV curable or solvent based inks, not both. Either of these ink types can be formulated using dyes, pigments, or a combination thereof. Generally inks will include some level of pigments in order to have good outdoor durability and opacity.
Solvent printers are a more mature technology and represent the vast majority of installations. Primarily solvent printers are used for roll to roll or flexible media with few installations set-up for rigid media or sheet. UV printers, driven in part by growing environmental concerns with the use of solvents, represent the fastest growing market for printers.
Whether printing with a solvent or UV machine, print adhesion is in large part determined by the ink. It is typical that printer manufacturers will offer only one choice of ink for their machines. Ink selection is therefore primarily dictated by machine selection.
When considering a UV digital printer, acrylic and polycarbonate sheets will provide similar ink adhesion and durability. Adhesion may be improved by wiping the substrate with isopropyl alcohol immediately before printing. Care should be taken to wipe away this alcohol as prolonged and repeated exposure can cause crazing (chemical attack) of the sheet. More specifically we suggest using ACRYLITE® digital print acrylic sheet for printing when printing with UV-curable flat bed printers. Many people like to use these printers with an acrylic substrate but find that those inks typically don’t adhere well to standard acrylic sheet. The ink does not get absorbed into the acrylic and needs a different way to stay adhered without flaking off. With ACRYLITE® digital print acrylic sheet, these inks adhere very well.
For demanding applications where high adhesion and resistance to scratching is important, “rigid” UV inks are a good solution. Currently “rigid” inks are used only in conjunction with a few brands of printers. The Dhurst Rho 600 and select Raster printers are two examples. Prints made using these printers with the rigid UV ink on ACRYLITE® sheet exhibit excellent adhesion and scratch resistance.
Equipment and Materials Suppliers
Click on this link to view our recommendations for painting equipment and suppliers.
Troubleshooting
The problems listed below represent the most common concerns when painting ACRYLITE® sheet. Most paint manufacturers publish excellent paint manuals that contain much more detailed information on trouble-shooting paint problems. Consult the equipment and paint manufacturers regarding problems not covered here.
Maskants
| Problem | Cause | Solution |
|---|---|---|
| Weak and brittle maskant | Air bubbles in film | Dilute slightly |
| Film not throughly dry | Wait recommended drying time | |
| Maskant film too thin | Increase film thickness to 3-5 mils (10-12 mils wet) | |
| Too much adhesion | Maskant film too thin | Increase film thickness to 3-5 mils (10-12 mils wet) |
| Coating exposed to UV | Do not store faces outside |
Spray Paints
| Problem | Cause | Solution |
|---|---|---|
| Poor adhesion | Incorrect paint | Use paints reocommended for use with acrylite |
| Direct or residue on sheet | Clean sheet thoroughly before painting | |
| Blotches of paint | Static elecricity | Neutralize charges with ionizing gun Wipe with damp cloth |
| Uneven paint application | Apply paint in more passes using less paint per pass | |
| Paint not applied uniformly | Use back -lightning to check paint as its being applied |
Screen Paints
| Problem | Cause | Solution |
|---|---|---|
| Poor Detail | Screen mesh too coarse | Use a finer mesh screen |
| Paint too thin | Use less thinner | |
| Worn screen | Replace screen | |
| Paint drying on screen | Hot, dry weather | Add retarder to slow paint drying |
| Too much time between screening | Flood screen between passes | |
| Stress form fabrication | Review fabrication techniques | |
| Crazing | Flame polishing | Flame polish as last step |
Digital Printing
| Problem | Cause | Solution |
|---|---|---|
| Ink is brittle | Too much Uv cure time | Adjust print conditions for less UV sure time |
| Poor adhesion | Dirt or residue on sheet | Clean sheet with 50-50 water plus IPA mix |
| Wrong maasking | Do nor use sheet with adhesive based masking | |
| Insufficient dwell time | adjust print conditions for additional cure time |
Additional Technical Information and Assistance
For more detailed information, see your local authorized ACRYLITE® Sheet Distributor or contact Roehm America LLC.
Fire Precautions
ACRYLITE® sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources. ACRYLITE® sheet usually burns rapidly to completion if not extinguished. The products of combustion, if sufficient air is present, are carbon dioxide and water. However, in many fires sufficient air will not be available and toxic carbon monoxide will be formed, as it will when other common combustible materials are burned. We urge good judgement in the use of this versatile material and recommend that building codes be followed carefully to assure it is used properly.
Compatibility
Like other plastic materials, ACRYLITE® sheet is subject to crazing, cracking or discoloration if brought into contact with incompatible materials. These materials may include cleaners, polishes, adhesives, sealants, gasketing or packaging materials, cutting emulsions, etc. See the Tech Briefs in this series for more information, or contact your ACRYLITE® sheet Distributor for information on a specific product.
